Common Drill Bit Issues and Their Solutions: A Guide for Manufacturing Partners
Drill bits are vital tools in industrial machining processes, ensuring high performance, precision, and efficiency. However, even the most robust drill bits can encounter problems during machining, potentially impacting the quality of work and leading to unplanned downtime. As a business seeking reliable suppliers, understanding these common drill bit issues—and their corresponding solutions—can help you improve operational efficiency, extend tool life, and ultimately enhance productivity. Below, we will take a closer look at some common drill bit issues in processing, their causes, and effective solutions.
1. Drill Bit Breakage
Causes:
Improper Clamping of Workpiece and Drill Bit: If the workpiece or drill bit is not securely clamped, misalignment or shifting can cause excessive stress on the tool, leading to breakage.
Incorrect Cutting Speed and Feed Rates: If the cutting speed or feed rate is too high or too low, it can create unnecessary strain on the drill bit, resulting in breakage over time.
Low-Quality Drill Bits: Subpar materials (like poor-quality steel) or manufacturing defects can lead to weakened drill bits, making them more susceptible to breaking under pressure.
Overexertion of Small Diameter Drill Bits: Using excessive force when drilling with small-diameter twist drills can cause them to snap or fracture.
Excessive Pressure on Large Diameter Drill Bits: Drilling with large diameter twist bits directly into the material can generate too much stress, increasing the likelihood of bit failure.
Solutions:
Ensure that both the workpiece and drill bit are firmly secured. Use appropriate clamping systems and ensure there is minimal vibration or movement during the drilling process.
Refer to cutting speed charts and adjust cutting speeds and feed rates based on the material being drilled and the specific application. Slow down when needed to prevent excessive stress on the bit.
Invest in high-quality drill bits made from superior materials, such as high-speed steel (HSS) or carbide, to minimize the risk of breakage.
For small-diameter drill bits, apply consistent, light pressure. Avoid using excessive force, as these tools are more delicate and prone to snapping.
When working with large diameter bits, consider using a pre-drilling step to reduce the load on the bit. Frequent retraction helps remove chips and prevent overheating.
2. Drill Bit Edge Chipping
Causes:
Insufficient Machine Rigidity: A machine with low rigidity or instability can induce vibrations during drilling, which can cause edges to chip or wear unevenly.
Inadequate Drill Bit Material: If the drill bit is made from a softer material, it’s more likely to experience edge chipping during machining.
Excessive Runout: If there is significant runout (wobble) in the drill bit, it can create an uneven cutting action, which can lead to edge damage.
Inadequate Clamping Force: If the drill bit or workpiece is not properly clamped, slipping or misalignment during drilling can lead to chipping.
Solutions:
Enhance machine rigidity by regularly maintaining and calibrating your machine. Proper machine alignment can reduce vibrations and ensure smoother drilling operations.
Opt for drill bits with high-quality, durable materials like cobalt or carbide. These materials can withstand higher cutting forces and maintain edge integrity.
Check and adjust the spindle to minimize runout. It is essential that the bit runs as true as possible, ideally with runout less than 0.02mm, to ensure smooth cutting.
Use high-clamping force solutions such as hydraulic chucks or collets that offer increased rigidity and prevent bit slippage during operation.

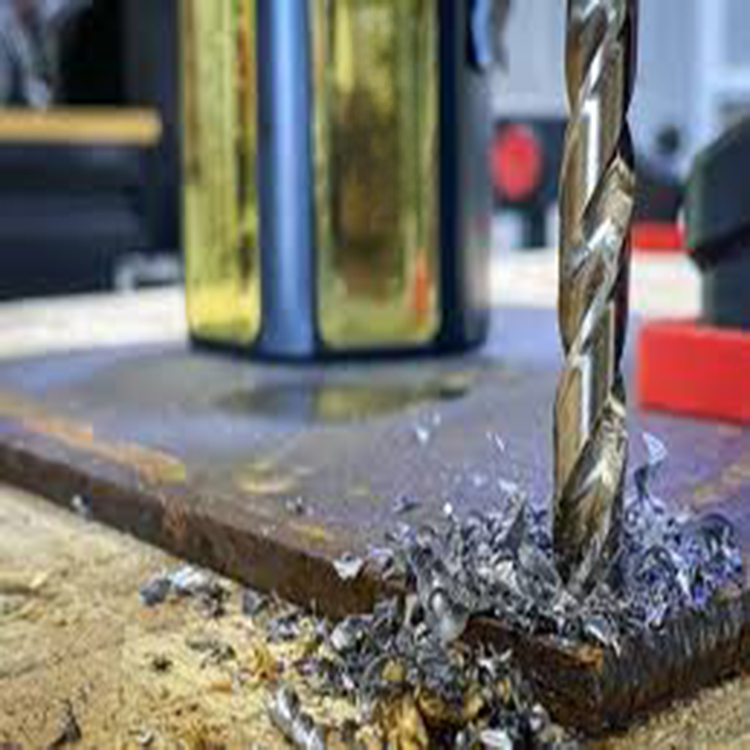

3. Poor Chip Removal
Causes:
Inefficient Chip Groove Design: If the chip flutes on the drill bit are poorly designed or clogged, they can restrict the smooth removal of chips during drilling.
Insufficient or Incorrect Cutting Fluid: A lack of proper lubrication or cooling can cause chips to adhere to the drill bit, leading to clogged flutes and possible overheating.
Solutions:
Optimize the design of the chip grooves to allow for effective removal of chips. Ensure the flute geometry is appropriate for the material being drilled to prevent chip buildup.
Use an increased flow of cutting fluid to improve both lubrication and cooling. Choose a fluid that is specifically designed for your materials and cutting conditions, ensuring it provides sufficient heat dissipation and minimizes friction.
4. Poor Cutting Performance
Causes:
Improper Drill Bit Sharpening: Dull or incorrectly sharpened drill bits may cause poor cutting performance, resulting in longer drilling times, inaccurate holes, and potential tool wear.
Incorrect Cutting Parameters: Using incorrect feed rates, speeds, or depth of cut can lead to suboptimal drilling performance, especially when dealing with tough materials.
Solutions:
Regularly re-sharpen drill bits to maintain their cutting edge. Sharpening should be done with high precision to ensure that the bit remains effective and efficient.
Ensure that cutting parameters are optimized based on the material type and workpiece characteristics. Use software or consult tooling manufacturers for the best speed and feed recommendations for each job.
5. Excessive Drill Bit Wear
Causes:
High Cutting Speeds: Drilling at excessively high speeds generates more heat, causing the drill bit to wear down faster.
Inappropriate Cutting Fluid: Using the wrong cutting fluid or insufficient coolant flow can lead to overheating, accelerating the wear of the drill bit.
Improper Material Selection: Choosing the wrong type of drill bit material for the application can result in faster wear, especially when drilling tougher materials.
Solutions:
Reduce cutting speeds where possible to decrease heat generation. Slower speeds can increase tool life and improve performance.
Select the appropriate cutting fluid that is designed for the material being drilled. Ensure the fluid has good lubricating properties to reduce friction and heat buildup.
Choose drill bits made from materials suited to the hardness and characteristics of the material being drilled. For example, use carbide bits for hard metals and HSS for softer materials.
Conclusion
By understanding the common challenges faced during drill bit operations, businesses can take proactive steps to improve their machining processes and maximize efficiency. Whether it’s addressing issues like breakage, edge chipping, poor chip removal, or excessive wear, taking the right steps to mitigate these problems can dramatically improve productivity and tool longevity.

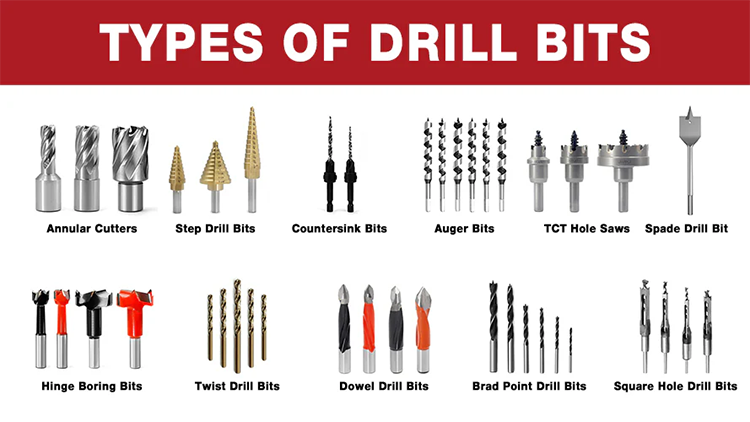

We understand the impact that high-quality, durable drill bits have on your operations. As a trusted supplier of precision drill bits, we offer a wide range of solutions, including twist drill bits, step drill bits, and annular cutters, all designed for superior performance and extended tool life. Our commitment to quality ensures that your operations run smoothly with minimal downtime, helping you achieve better results with every drill.
