Precision and Performance: Step Drill Bits for Industrial Applications


Step drill bits, also known as stepped drill bits or tiered drill bits, are essential tools in industries such as metalworking, automotive manufacturing, and construction. Renowned for their distinctive tiered design, these versatile tools enable users to drill multiple hole sizes with a single bit, enhancing efficiency and reducing costs. This article explores the materials used in manufacturing step drill bits, outlines the production process, and highlights the advantages they bring to B2B applications.

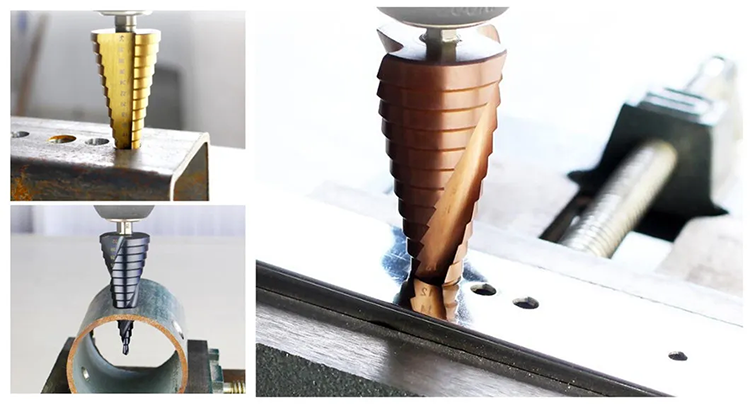

step drill bits

The Step Drill Bit Manufacturing Process

1. Material Selection

The material is the cornerstone of a step drill bit's performance, directly influencing its durability, cutting efficiency, and longevity. Common materials include:

  • High-Speed Steel (HSS): Known for its hardness, heat resistance, and cost-effectiveness, HSS is widely used for general-purpose drilling in materials like thin steel sheets and plastics. It offers a balance between performance and affordability.

  • Tungsten Carbide: With exceptional hardness and wear resistance, tungsten carbide is ideal for heavy-duty applications such as drilling stainless steel, cast iron, or other hard metals. Its durability ensures longer tool life even in demanding environments.

  • Cobalt-Alloyed HSS: HSS blended with cobalt enhances heat resistance and cutting capability, making it suitable for materials requiring higher temperature tolerance.

  • Surface-Coated Materials: Coatings like titanium nitride (TiN), titanium carbonitride (TiCN), or aluminum titanium nitride (AlTiN) are applied to improve wear resistance, reduce friction, and extend tool life.

Material selection depends on the intended application, balancing factors such as hardness, wear resistance, and thermal stability to meet the specific needs of B2B clients.

2. Shaping and Forming

Once the material is selected, it is cut into cylindrical blanks of appropriate lengths. These blanks undergo precision machining to form the iconic tiered structure of the step drill bit. Advanced CNC grinding machines ensure that the dimensions, angles, and step spacing are precise, facilitating smooth transitions and consistent cutting performance during use.

3. Edge and Flute Design

The cutting edges and flutes play a pivotal role in the bit's efficiency and chip removal. Key design considerations include:

  • Sharp Multi-Layer Cutting Edges: Optimize cutting efficiency and reduce wear on individual cutting layers.

  • Flute Geometry: Spiral or straight flutes are designed to enhance chip evacuation, preventing clogs and maintaining cutting precision. Spiral flutes are typically preferred for softer materials, while straight flutes handle harder materials effectively.

4. Heat Treatment

Heat treatment processes such as quenching and tempering enhance the bit's mechanical properties, including hardness, toughness, and wear resistance. The specific heat treatment method is tailored to the bit's material and application requirements.

5. Surface Treatment

To improve performance and extend tool life, surface treatments are applied. These include:

  • Coatings: Titanium nitride (TiN), aluminum titanium nitride (AlTiN), or titanium carbonitride (TiCN) coatings increase surface hardness and reduce friction during drilling.

  • Polishing: Ensures smooth surfaces, minimizing resistance and reducing heat generation during use.

6. Quality Control and Packaging

Rigorous quality control processes evaluate dimensional accuracy, edge sharpness, coating adhesion, and overall durability. Each bit is inspected to ensure it meets stringent industrial standards. Approved bits are securely packaged to protect them during storage and transport.

Advantages for B2B Customers

1. Enhanced Efficiency

Step drill bits allow users to drill multiple hole sizes without changing tools, streamlining workflows and improving productivity in high-volume operations.

2. Cost Savings

The durability of materials like tungsten carbide and HSS, combined with advanced coatings, reduces tool replacements and minimizes downtime, delivering long-term cost savings for businesses.

3. Precision and Consistency

The precise geometry of step drill bits ensures accurate hole dimensions, making them indispensable for industries requiring high precision, such as aerospace and automotive manufacturing.

Key Considerations for B2B Buyers

For industrial buyers, selecting the right step drill bit involves evaluating:

  • Material Compatibility: Ensure the bit material aligns with the workpiece material for optimal results.

  • Hole Size and Depth Requirements: Choose a step design that matches specific drilling needs.

  • Supplier Reliability: Partner with trusted manufacturers to ensure consistent quality and technical support.

Conclusion

Step drill bits are indispensable tools for industrial applications, offering a blend of efficiency, cost-effectiveness, and precision. With innovations in material technology and manufacturing processes, these tools continue to meet the evolving demands of modern businesses.

As a professional drill bit supplier, Coinch Tools specializes in manufacturing high-quality step drill bits tailored to the needs of industrial clients. Contact us today to explore our range of products and discover how we can enhance your operations.
