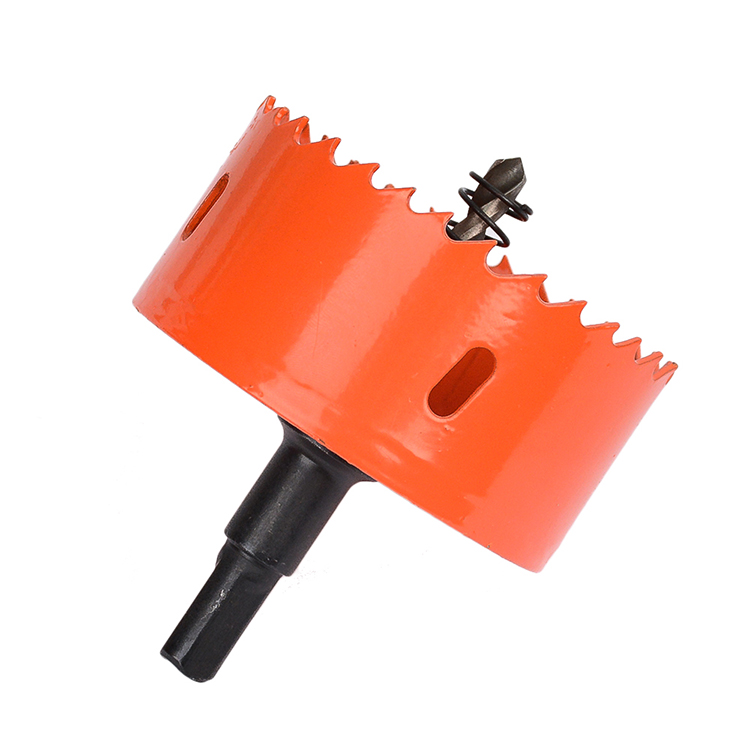

M3 Bi-Metal Hole Saw for Metal Wood Plastic Cutting

  • High-speed steel teeth for long-lasting performance
  • Heat-resistant design for smooth and fast cutting
  • Ideal for cutting through metal, wood, and plastic
  • Optimized tooth geometry reduces vibration for clean cuts
  • Compatible with standard hole saw arbors
  • Available in a range of sizes for versatile applications
  • Perfect for professionals and DIY enthusiasts
  • Durable bi-metal construction ensures reliability in tough jobs

Procuct NameM3 Bi-Metal Hole Saw for Metal Wood Plastic Cutting
Teeth Type4/6 TPI Variable Teeth
Teeth MaterialM3 High Speed Steel   (M42 HSS Co8% is available)

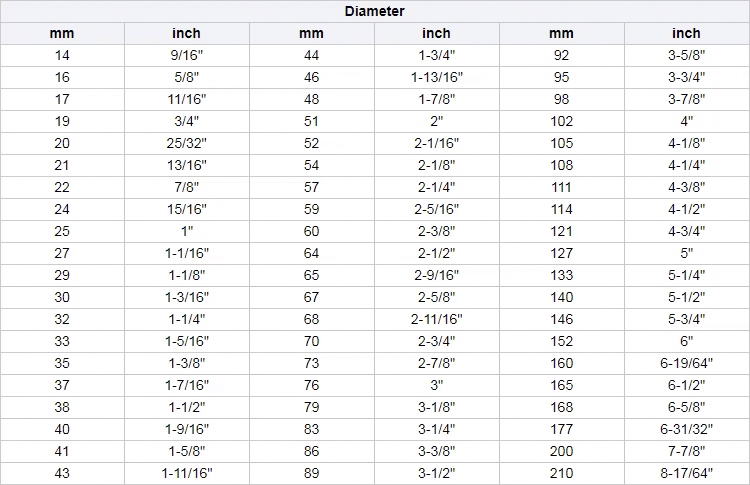

Diameter14mm-210mm
Thread TypeDia.14mm to 30mm with 1/2-20UNF; Dia.32mm to 210mm with 5/8-18UNF

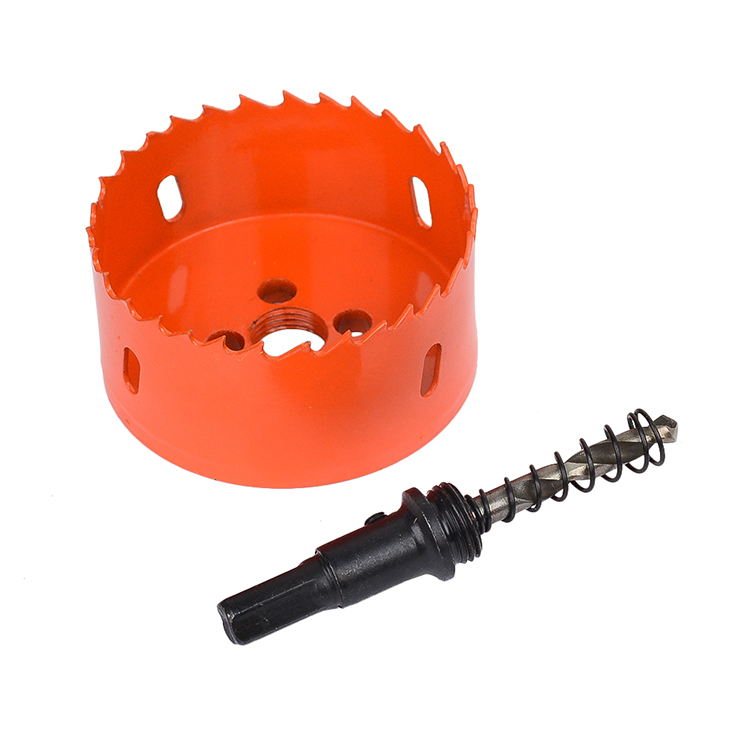

Arbor Type

3/8" Hex Shank Small Arbor for Dia.14mm to 30mm, 7/16" Hex Shank Big Arbor for Dia.32mm to 210mm

3/8" and 7/16" Quick Change Hex Shank Arbor are Available,

SDS PLUS Shank Small and Large Arbor are Available.

Cutting Depth38mm   (44mm Deep Cutting Depth is available)
Surface FinishColor Painting
PackageOne Piece In One White Paper Box or Color Paper Box Or PVC Double Blister
Features

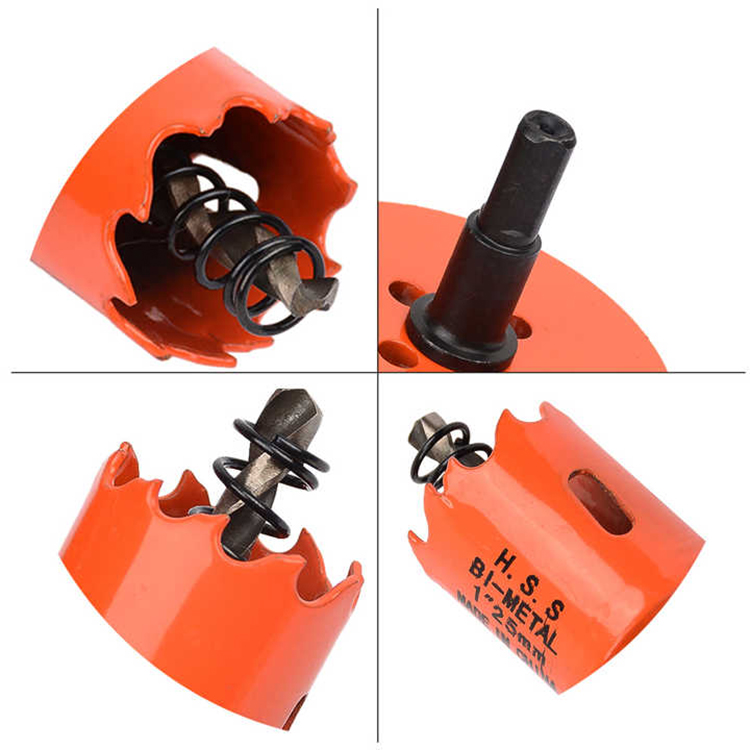

1. High speed Steel teeth electron welded to a high Carbon steel body ensuring maxium durability and a long working life.

2. 4/6 variable pitch tooth design with improved chip clearance and lower feed pressure required with varying gullet depth.

3. Less heat build up ensures the teeth stay sharp longer.

4. Faster and more aggressive cutting performance. Using a cooling lubricant will extend the life of your hole saw by 500%

5. Bimetal Hole Saws with HSS teeth are rugged cutting tools designed to cut accurate holes in machinable materials up to 38mm thick.

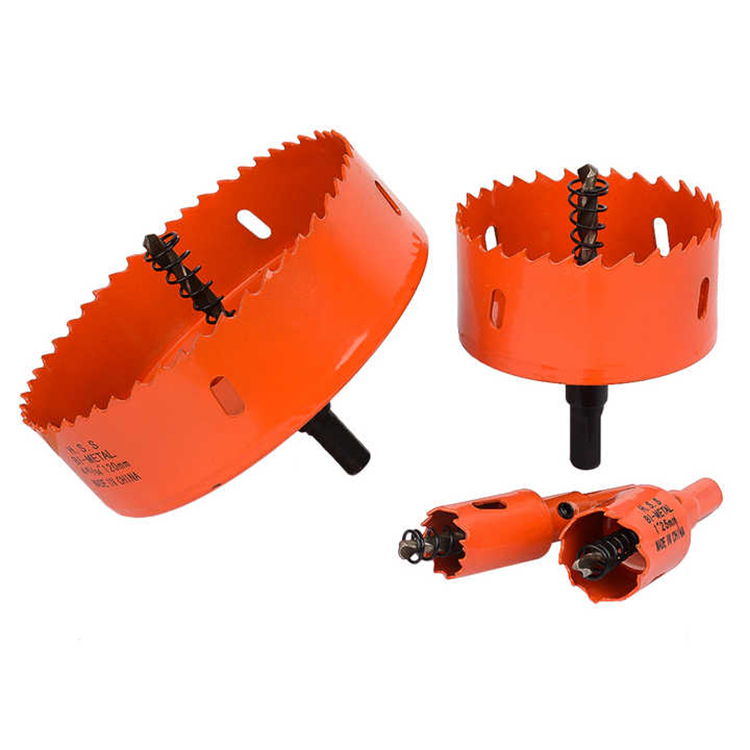

6. Ranging in size from 14mm to 210mm in diameter, that can be used in portable electric tools, air tools, drill press, lathes, boring mills, milling machines and some other machines, which have rotating spindles.

7. The HSS teeth of our Bimetal hole saws are recommended for cutting steel, cast iron pipe, steel plates, aluminium, copper, brass, stainless steel, wood and plastic.

8. 14mm to 30mm diameter hole saw with 1/2-20UNF threaded connecting; 32mm to 210mm diameter hole saw with 5/8-18UNF threaded connecting.
