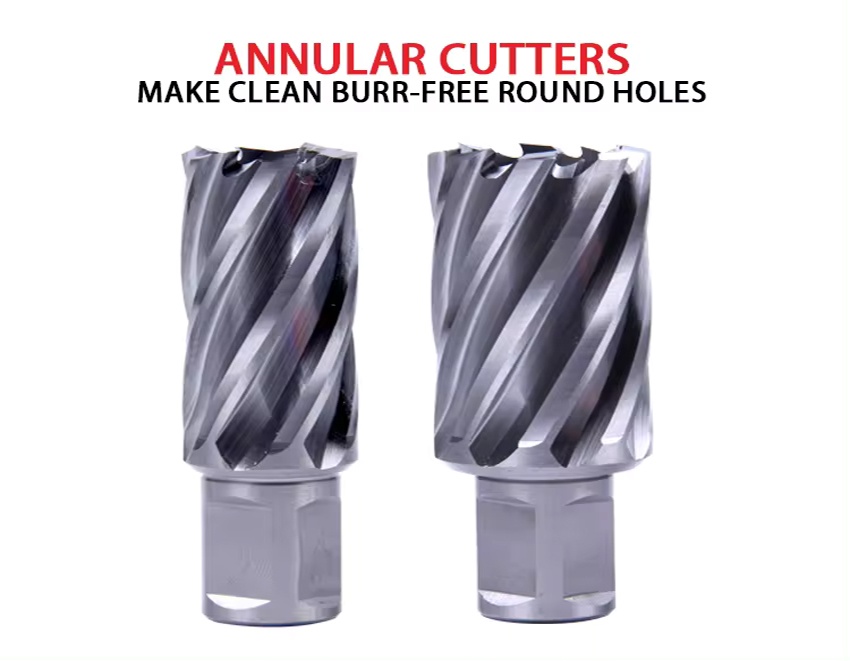

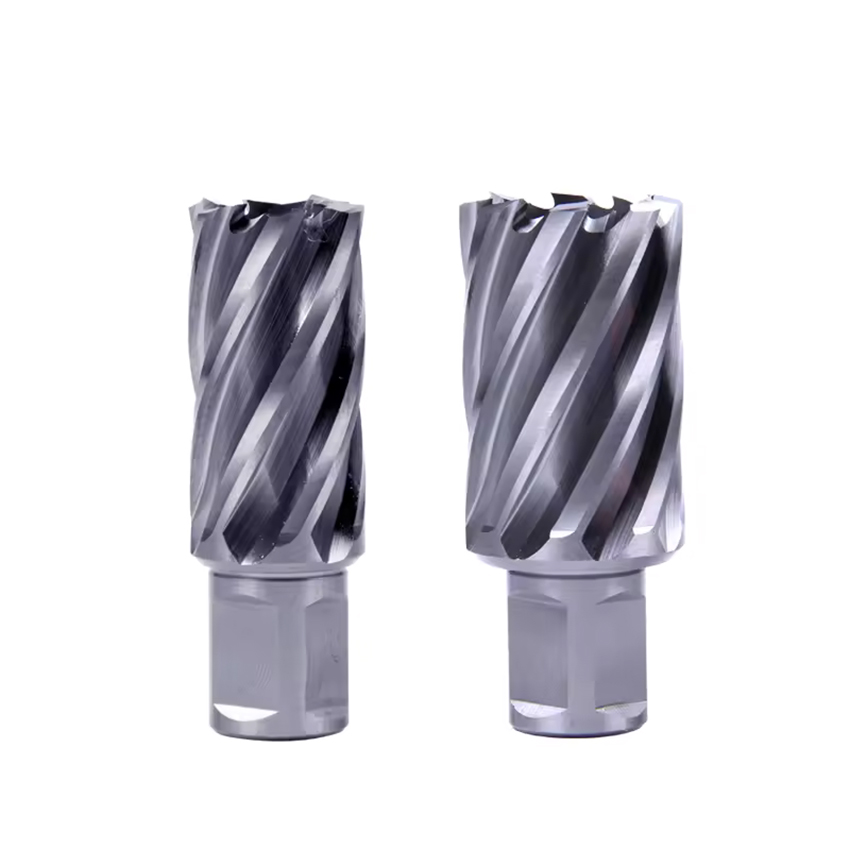

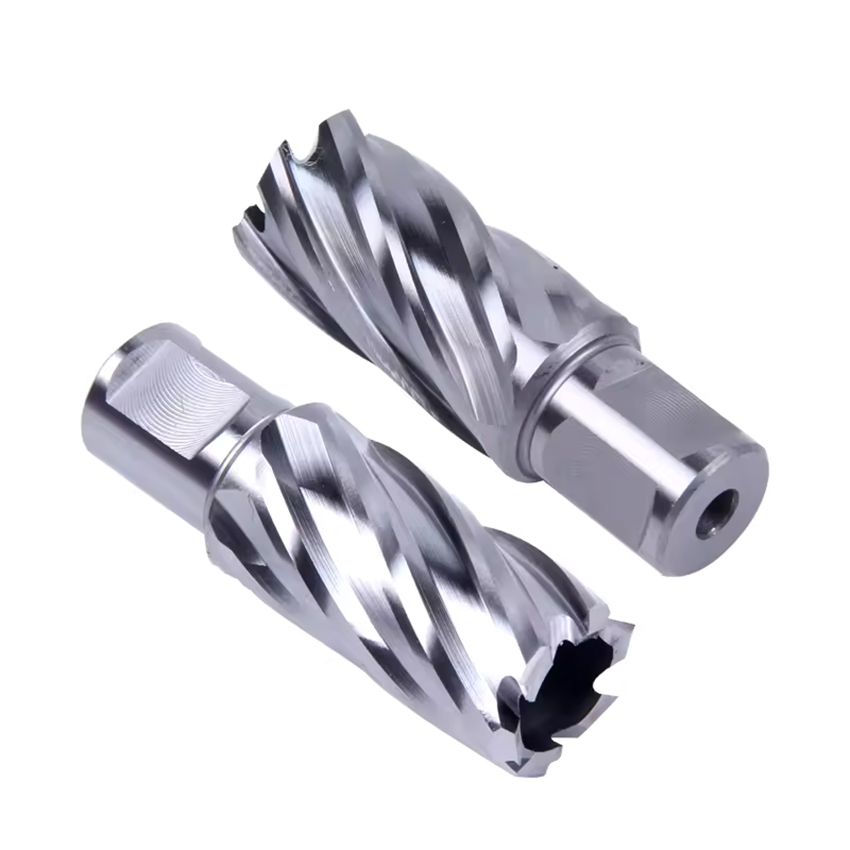

High speed steel HSS cutting tools annular cutter for steel plate
- High-speed steel (HSS) material for long-lasting durability
- Precision cutting for clean and smooth results
- Annual cutter design for efficient and effective use
- Versatile tool suitable for a variety of cutting tasks
TCT & HSS Annular Cutter, with unique types geometry and Random-space tips provide clearly cutting, fast feed rate, less vibration, smooth hole surface ad long tool life, improving efficiency for multiple times than general twist drills.
When matching magnetic drill machine, it coule conduct multi-direction drilling from front, side and top of the processed workpiece, and the drilling will not be restrained by auxiliary equipment, it is portable and convenient.
The cutting power is 80% of twist drill. For example, radial drilling machine, the normal drilling of twist drill is 80mm in diameter, but for annular cutter is 200mm in diameter.
Annular Cutter can be used on all kinds of magnetic drills like Nitto, Hougen, Janoy, Alfra, Ruko; as well as drilling machines and electric drill in rotary mode and all kinds of drilling presses with all types of shank.
Fractional and metric sizes are available. It can be widely used in drilling steel, copper, aluminum, stainless steel and plastic, in either plate or pipe form.
For Other Sizes, Types, Materials, Standard, Process, Packages, Please Contact us!
| roduct Name | HSS and TCT Annular Cutter Broach Cutter Broaching Magnetic Drill Bit for Magnetic Base Drills Machine Accurate Cutting |
| Material | HSS Annular Cutter: M2AL High Speed Steel TCT Annular Cutter: Tungsten Carbide Tip + 45# Steel Body |

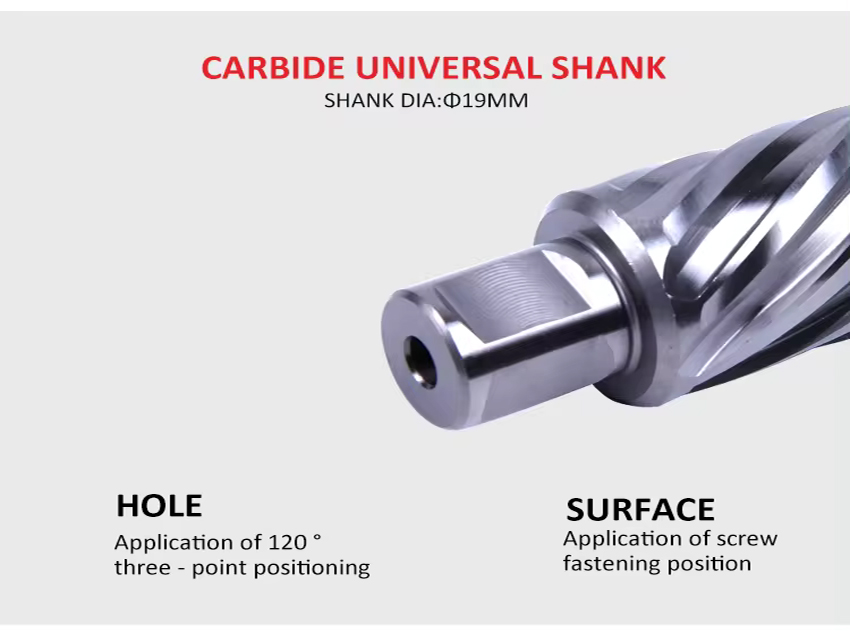

| Shank | Weldon Shank (Universal Shank and Fein Shank are available) |
| Surface Finish | HSS Annular Cutter: Bright, TIN coating and Titanium coating are available TCT Annular Cutter: Sand Blasted |
| Package | One Piece in One Plastic Tube |

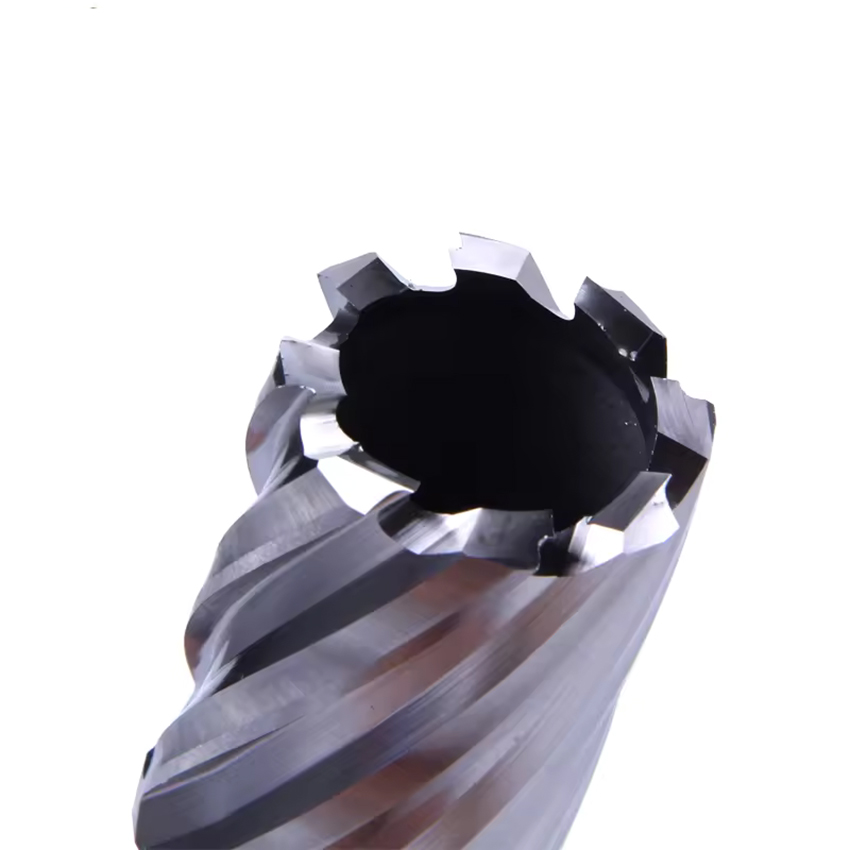

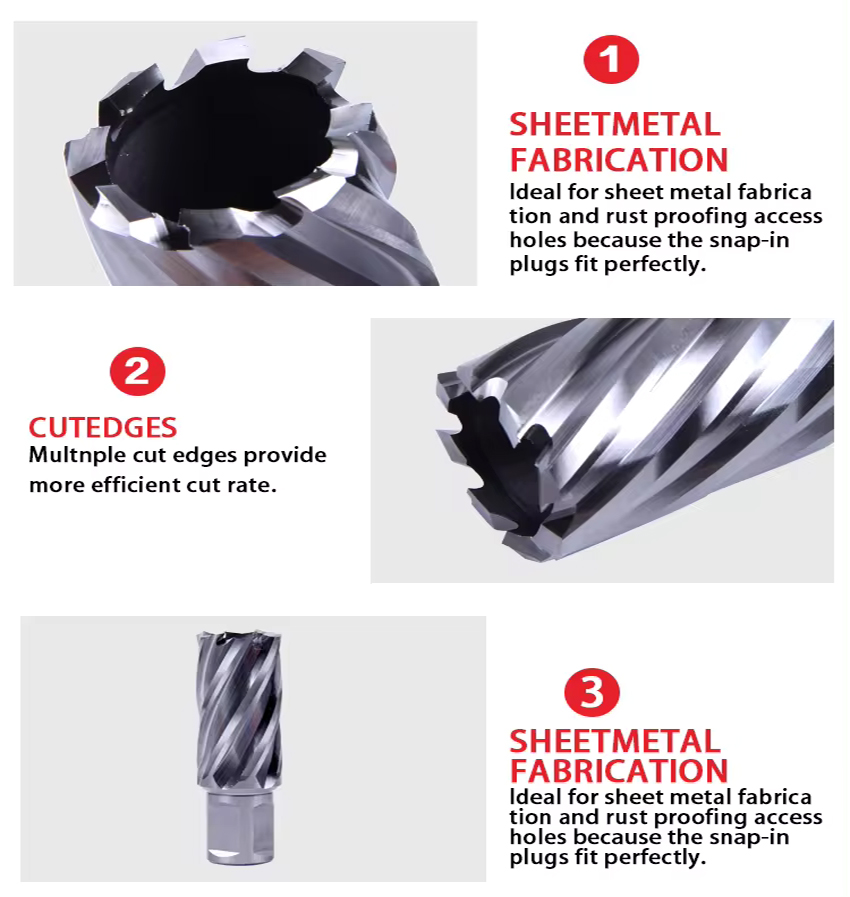

| Features | HSS Annular Cutter: 1.Made of high quality & super tough high speed steel with multi-cut geometry for ply-cutting and lower friction to reach better endurance and less breakage ; 2.Suitable for steel (such as T-brackets, large sheets), cast iron, non-ferrous and light metals; 3.Optimised cutting edge geometry for increased cutting performances and reduced cutting forces; 4.The effective cutting angles are designed for universal use in various sorts of steel; 5.Improved removal of chips thanks to U-shaped recesses. The specific geometry of the recess reduces the thermal load on the HSS core drill as the heat created in cutting is removed with the chips to a very great extent; 6.Reduction of the friction between the HSS core drill and the workpiece thanks to optimised spiral-shaped guide chamfers; TCT Annular Cutter: 1.Tungsten carbide tipped annular cutters combine extreme hardness and durability with a wide range of possible applications in a convincing product. 2.Suitable for steel (such as T-brackets, large sheets), cast iron, non-ferrous and light metals; 3.Unique tooth geometry, cutting teeth specially grinding by CNC Machine to assure all of teeth in same level,allows for better centering and faster cutting; 4.Thin wall design enables cutters to cut faster and more efficiently by removing less material during drilling; 5.Shorter flute design allows for chips to fall freely from cutter; |
If you want get more information, click here to send an inquiry
