Two Heads HSS Double Ended Drill Bit for Metal Thin Sheet Drilling Two Heads HSS Double Ended Drill Bit for Metal Thin Sheet Drilling Two Heads HSS Double Ended Drill Bit for Metal Thin Sheet Drilling Two Heads HSS Double Ended Drill Bit for Metal Thin Sheet Drilling

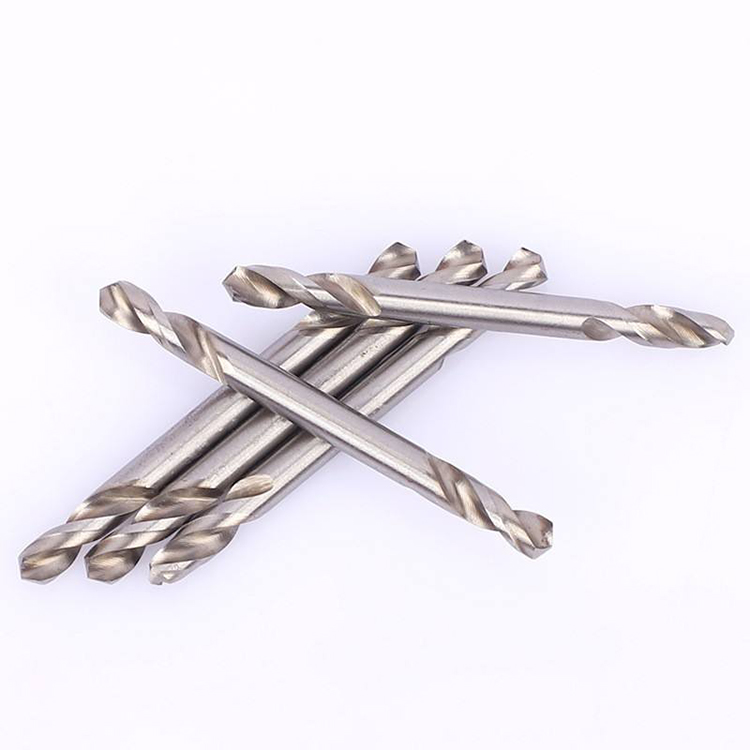

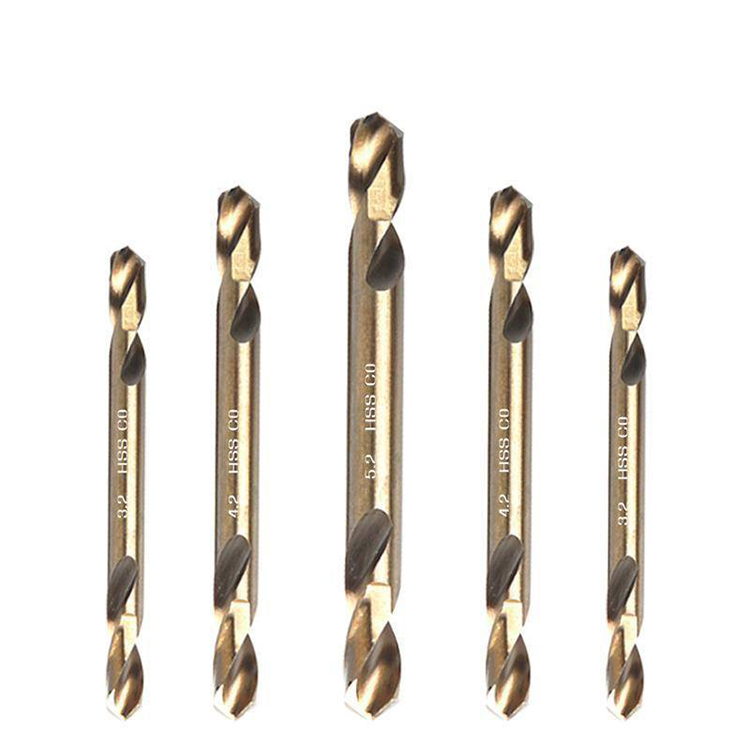

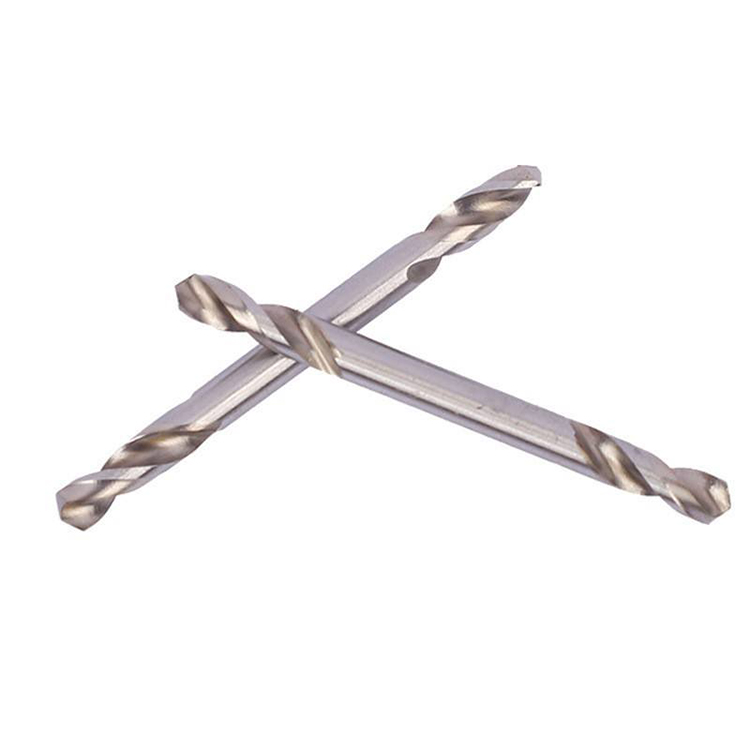

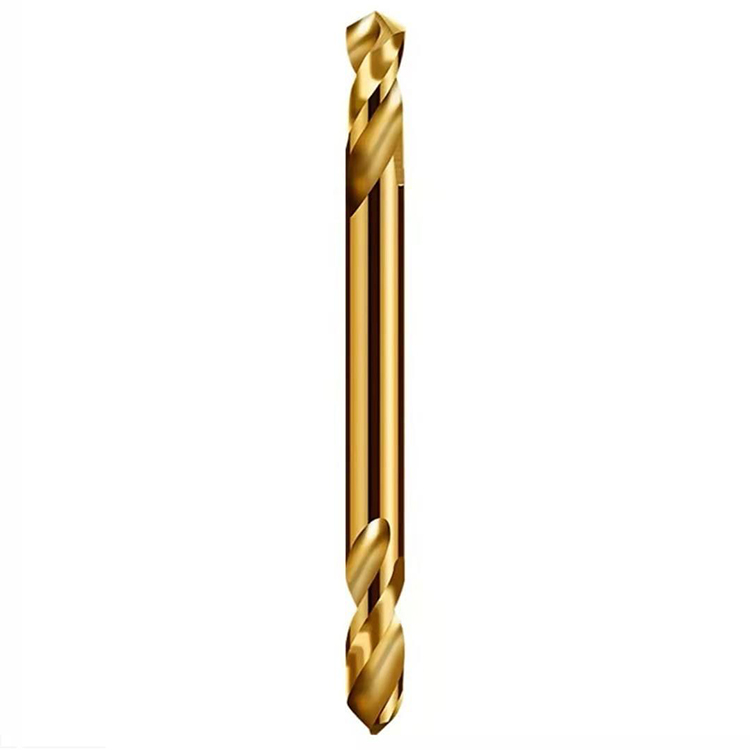

Two Heads HSS Double Ended Drill Bit for Metal Thin Sheet Drilling

  • High-speed steel for exceptional hardness and durability
  • Double-ended design for extended tool life and versatility
  • Precision-ground tips for clean, accurate drilling
  • Suitable for metal, wood, and plastic materials
  • Heat-resistant coating to reduce wear and increase longevity
  • Wide range of sizes available for diverse applications
  • Cost-effective solution with dual cutting ends
  • Smooth and consistent performance in demanding tasks




Two Heads HSS Double Ended Drill Bit for Metal Thin Sheet Drilling

Two Heads HSS Double Ended Drill Bit for Metal Thin Sheet Drilling

Product Name Bright Finish HSS Two Head Double Ended Drill Bit for Thin Sheet
Material HSS
Process Fully Ground
Standard

 Double Ended

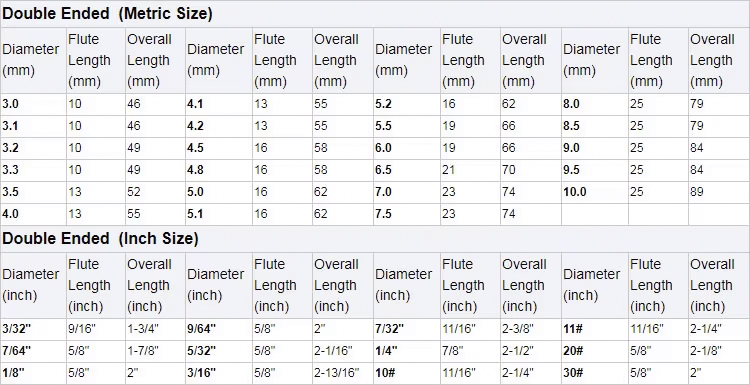

Size 3-5.2mm, 7/64"-1/4", 10#, 20#, 30#
Point Type 135 Degree Split Point (118 Degree Regular Point, Turbo Max Point, Pilot Point are Available)
Shank Type

 Straight Shank  (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,

                                Threaded Hex Shank,Taper Shank are Available)

Helix Angle Regular Spiral Type N  (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)
Web & Flute Type Regular Web & Flute  (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)
Surface Finish Bright  (Black Oxide, Amber Color, Titanium, Black & Gold, Black & Bright are Available)
Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.
Features

 1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness   and toughness for wear resistance.

 2.No center punch is needed—the aggressive 135° Quick-Cut points are self-centering and penetrate quickly   with less pressure. Will not "walk" or "wander".

 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
 4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface

 of the bit.
 5.The double ended design doubles the life of the drill bit.

Two Heads HSS Double Ended Drill Bit for Metal Thin Sheet Drilling
