HRC55 4flutes metal HRC Carbide end mill cutter CNC end milling cutters HRC55 4flutes metal HRC Carbide end mill cutter CNC end milling cutters HRC55 4flutes metal HRC Carbide end mill cutter CNC end milling cutters

HRC55 4flutes metal HRC Carbide end mill cutter CNC end milling cutters

  • High precision cutting performance
  • Durable carbide material for extended tool life
  • Suitable for a variety of materials including steel, aluminum, and more
  • Wide range of sizes and styles available for different machining applications
  • Designed for smooth surface finish and chip evacuation

HRC55 4flutes metal HRC Carbide end mill cutter CNC end milling cutters

Product Name
HRC Carbide end mill cutter CNC end milling cutters
Material
Tungsten carbide
Model Number
Standard size
Flutes
2 /3/4 flutes
Coating
AlTiN, TiAlN, TiSiN, AlTiSiN, TiN, Nano, or your requirements
HRC
45/55/60/65 degree
Shank Diameter
0.2mm-20mm or your requirements
Overall Length
50mm-200mm or your requirements
Helix Angle
30/35/45 degree
Tolerance
0~±0.01mm
Suitable for
Cast iron, Stainless steel, mould steel, carbon steel, titanium alloy, tool steel, heat-treated steel, wood, etc
Machine Type
CNC machine, Milling machine, etc
All the specs can be customized

For Other Sizes, Types, Materials, Standard, Process, Packages, Please Contact us!


1. High quality carbide rod:

All cutting materials are from international famous brands, high hardness, long tool life.
Grade
HRC45
HRC55
HRC60
HRC65
Materials
YG10X
ZK30UF
ZK40SF
GU25UF

Details
Grain size: 0.8um
Co: 10%
Flexural strength:
3320N/mm2
Grain size: 0.6um
Co: 10%
Flexural strength:  4000N/mm2
Grain size: 0.5um
Co: 12%
Flexural strength 4300N/mm2
Grain size: 0.4um
Co: 12%
Flexural strength:  4300N/mm2

2. Super coating

Good coating can improve tools life and production efficiency, and we provide professional suggestions according to your cutting requirements.
Item
Color
Hardness (HV)
Thickness (UM)
Oxidation Temp.(℃)
Friction Coeffient
AlTiN
Black
3300
2.5-3
900
0.3
TiAlN
Violet
2800
2.5-3
900
0.3
TiSiN
Bronze
3600
3
1000
0.45
AlTiSiN
Blue
4000
4
1200
0.4
TiN
Gold
2500
2.5-3
600
0.4



The key cutting products we selling as below:
◆ Carbide inserts
◆ Solid Carbide End Mills
◆ Turning Bar Tool
◆ Face Milling Tool
◆ Drills & Reamers & Thread Cutters & Burrs
◆ Thread Tapper Tool
◆ CNC Chuck & Adapter
◆ Precision Tool Vise
◆ Other Accessories

If you want get more information, click here to send an inquiry.

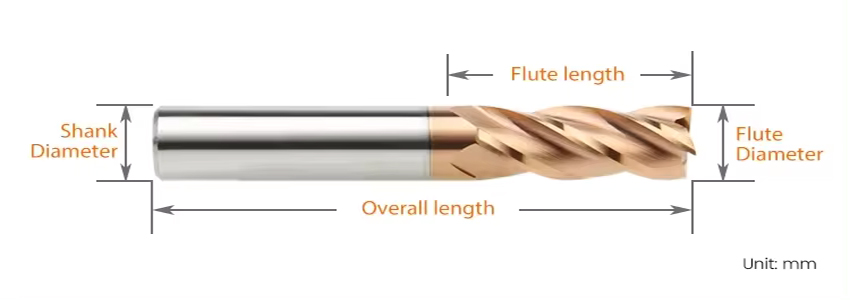

HRC55 4flutes metal HRC Carbide end mill cutter CNC end milling cutters

Model
Flute Dia.
Flute Length
Shank Dia.
Overall length
3*8*3*50
3
8
3
50
3*12*3*75
3
12
3
75
3*15*3*100
3
15
3
100
1*3*4*50
1
3
4
50
1.5*4*4*50
1.5
4
4
50
2*5*4*50
2
5
4
50
2.5*7*4*50
2.5
7
4
50
3*8*4*50
3
8
4
50
3.5*10*4*50
3.5
10
4
50
4*10*4*50
4
10
4
50
4*16*4*75
4
16
4
75
4*20*4*100
4
20
4
100
5*13*5*50
5
13
5
50
5*20*5*75
5
20
5
75
5*25*5*100
5
25
5
100
1*3*6*50
1
3
6
50
1.5*4*6*50
1.5
4
6
50
2*5*6*50
2
5
6
50
2.5*7*6*50
2.5
7
6
50
3*8*6*50
3
8
6
50
3.5*10*6*50
3.5
10
6
50
4*10*6*50
4
10
6
50
4.5*12*6*50
4.5
12
6
50
5*13*6*50
5
13
6
50
5.5*15*6*50
5.5
15
6
50
6*15*6*50
6
15
6
50
6*25*6*75
6
25
6
75
6*30*6*100
6
30
6
100
6*40*6*150
6
40
6
150
7*18*8*60
7
18
8
60
8*20*8*60
8
20
8
60
8*28*8*75
8
28
8
75
8*35*8*100
8
35
8
100
8*50*8*150
8
50
8
150
9*23*10*75
9
23
10
75
10*25*10*75
10
25
10
75
10*40*10*100
10
40
10
100
10*50*10*150
10
50
10
150
11*28*12*75
11
28
12
75
12*30*12*75
12
30
12
75
12*45*12*100
12
45
12
100
12*60*12*150
12
60
12
150
14*35*14*80
14
35
14
80
13*45*14*100
13
45
14
100
14*45*14*100
14
45
14
100
14*60*14*150
14
60
14
150
15*45*16*100
15
45
16
100
16*45*16*100
16
45
16
100
16*60*16*150
16
60
16
150
18*45*18*100
18
45
18
100
18*70*18*150
18
70
18
150
20*45*20*100
20
45
20
100
20*70*20*150
20
70
20
150
