Cnc Process Hard Carbide end milling cutter DLC Coating 3 Flutes End Mill for Cutting Aluminum end m Cnc Process Hard Carbide end milling cutter DLC Coating 3 Flutes End Mill for Cutting Aluminum end m Cnc Process Hard Carbide end milling cutter DLC Coating 3 Flutes End Mill for Cutting Aluminum end m

Cnc Process Hard Carbide end milling cutter DLC Coating 3 Flutes End Mill for Cutting Aluminum end m

  • High-quality carbide material
  • Designed for precision cutting
  • Suitable for various materials
  • Long-lasting durability

Cnc Process Hard Carbide end milling cutter DLC Coating 3 Flutes End Mill for Cutting Aluminum end m


For Other Sizes, Types, Materials, Standard, Process, Packages, Please Contact us!

Products Description
1.One plastic pipe pack one piece,1/5/10pcs per group
2.Put goods enclosed with air bubble paper into box
3.Other package is accepted according to customer's requirement
Product Name

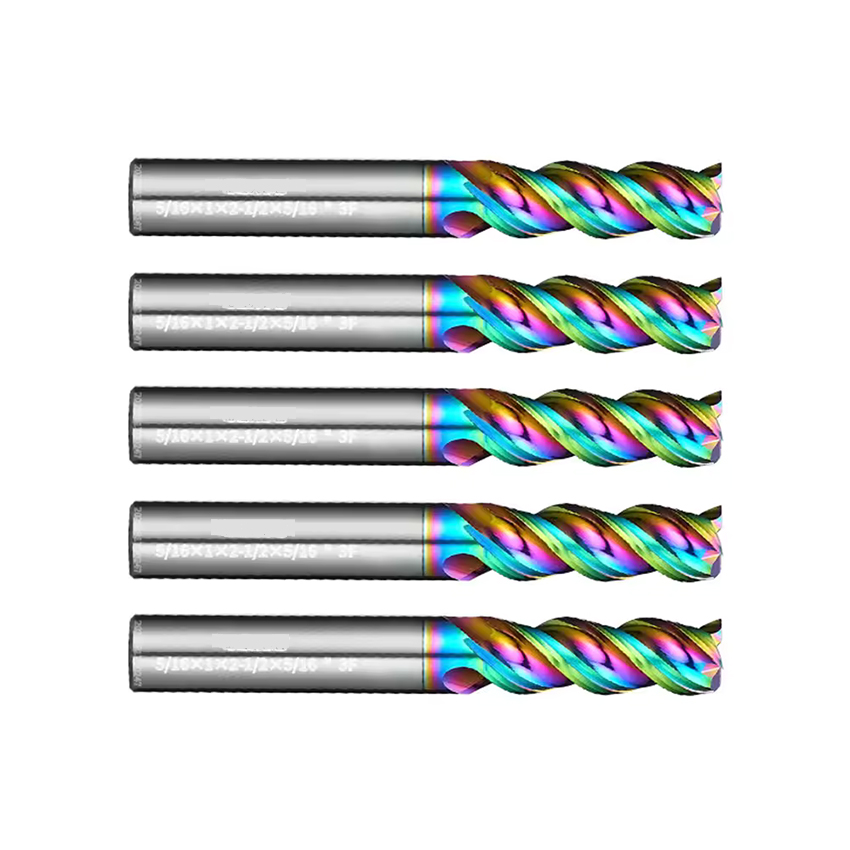

Carbide 3 Flutes Diameter 5/16 Milling Cutters
Material
100% New material
Coating

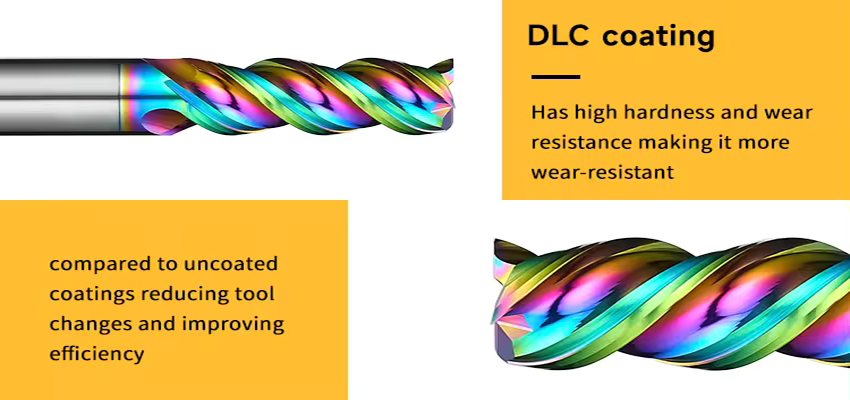

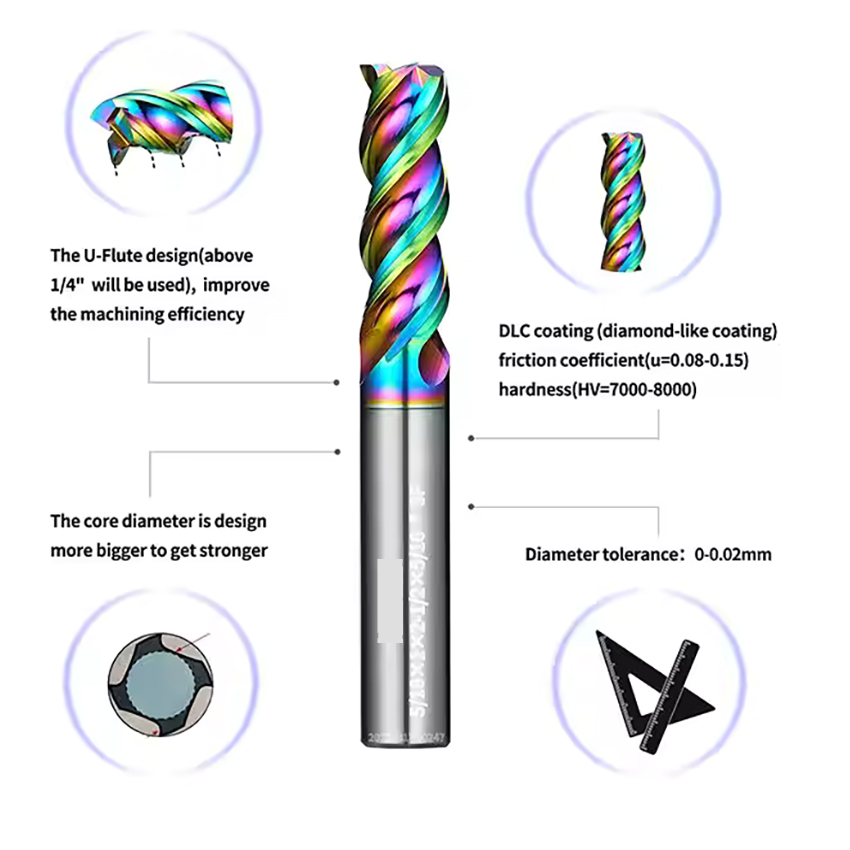

DLC Coating
HRC
HRC45~65
OEM
Avaliable
Machining
Carbon Steel/Mould steel /Stainless steel

Cnc Process Hard Carbide end milling cutter DLC Coating 3 Flutes End Mill for Cutting Aluminum end m

Cnc Process Hard Carbide end milling cutter DLC Coating 3 Flutes End Mill for Cutting Aluminum end m

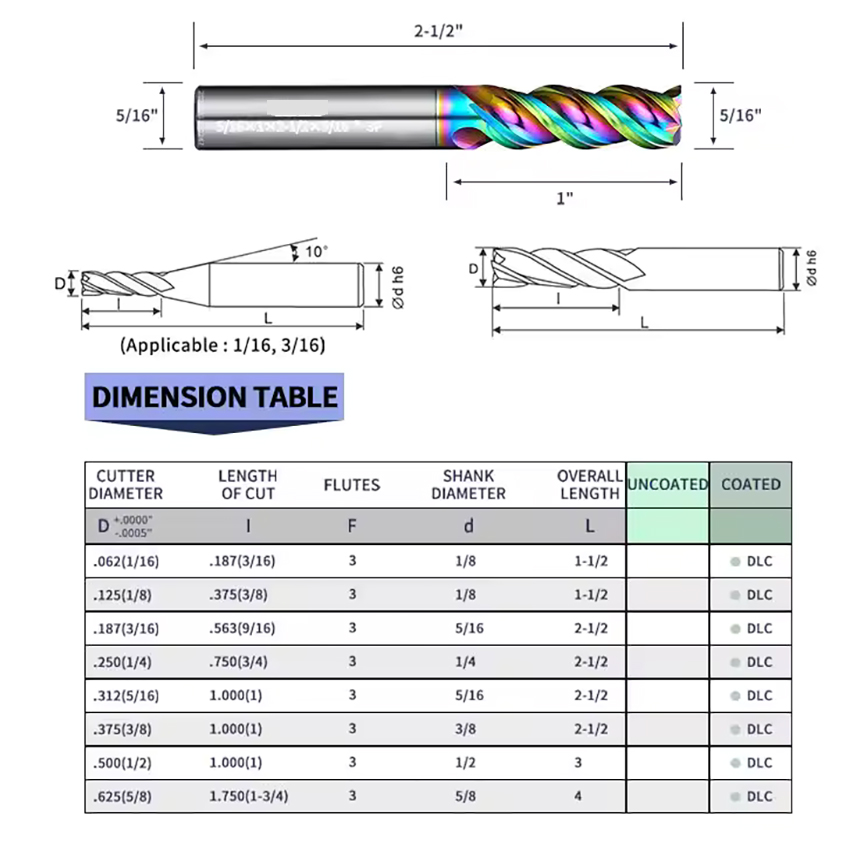

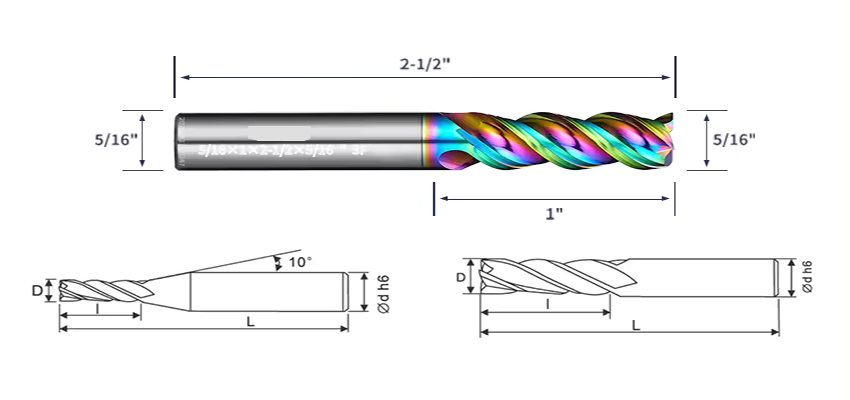

DIMENSION TABLE
CUTTER
DIAMETER
LENGTH
OF CUT
FLUTES
SHANK
DIAMETER
OVERALL
LENGTH
UNCOATED
COATED
 D+.0000"
      -.0005"
I
F
d
L


.062(1/16)
.187(3/16)
3
1/8
1-1/2

DLC
.125(1/8)
.375(3/8)
3
1/8
1-1/2

DLC
187(3/16)
.563(9/16)
3
5/16
2-1/2

DLC
.250(1/4)
.750(3/4)
3
1/4
2-1/2

DLC
.312(5/16)
1.000(1)
3
5/16
2-1/2

DLC
.375(3/8)
1.000(1)
3
3/8
2-1/2

DLC
.500(1/2)
1.000(1)
3
1/2
3

DLC
.625(5/8)
1.750(1-3/4)
3
5/8
4

DLC

Tips:

The above specifications are standard Size. At the same time, we support OEM customized production,the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F,8F and the logo could becustomized.

If you want get more information, click here to send an inquiry.
