General Use Tungsten Carbide Tipped TCT Wood Cutting Circular Saw Blade for Wood General Use Tungsten Carbide Tipped TCT Wood Cutting Circular Saw Blade for Wood General Use Tungsten Carbide Tipped TCT Wood Cutting Circular Saw Blade for Wood

General Use Tungsten Carbide Tipped TCT Wood Cutting Circular Saw Blade for Wood

  • High-performance
  • Long-lasting
  • Precision-cutting
  • Reliable TCT Saw Blade

General Use Tungsten Carbide Tipped TCT Wood Cutting Circular Saw Blade for Wood


Product NameTungsten Carbide Tipped Wood Cutting TCT Circular Saw Blade for Wood Chipboard
Material

Teeth Material: Tungsten Carbide
Body Material: 50# Carbon Steel ( 65Mn Steel is avaialable )

ProcessHigh-Frequency Welded
Teeth TypeATB Teeth  ( ATB Teeth with anti-kick back , FT Teeth, TCG Teeth, ATBR Teeth are available)
Arbor Hole SizeAll size is available upon request,such as 5/8'', 1'' 20mm, 22.23mm, 25mm, 30mm, 35mm...etc

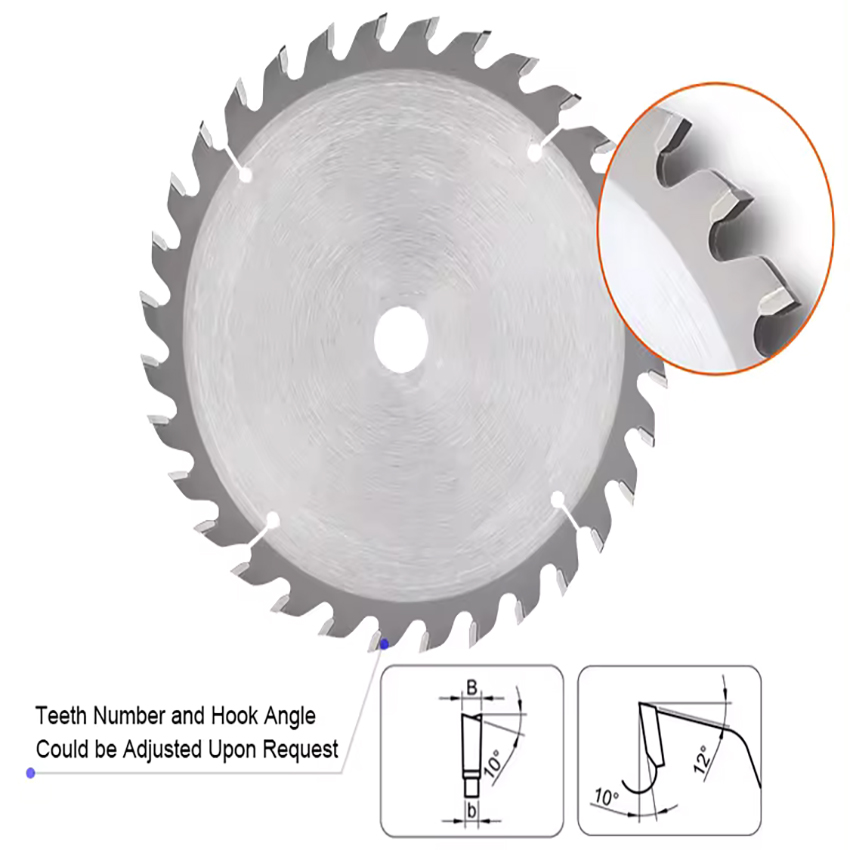

Teeth DesignTeeth number Could be adjusted upon request, Hook Angle could be adjusted upon request
PackageOne piece in one PVC double blister, paper box or PVC Skin Card
Features

1.This TCT Circular saw baldes are designed as general cross cut blades,suitable for cross cutting softwwod,hardwood, plywood, chipboard, multi-board, panels, MDF,plated&counted-plated panels, laminated&Bi-laminate plastic and FRP. Providing a high degree of finish edge. The blades also can rip cut along the grain.

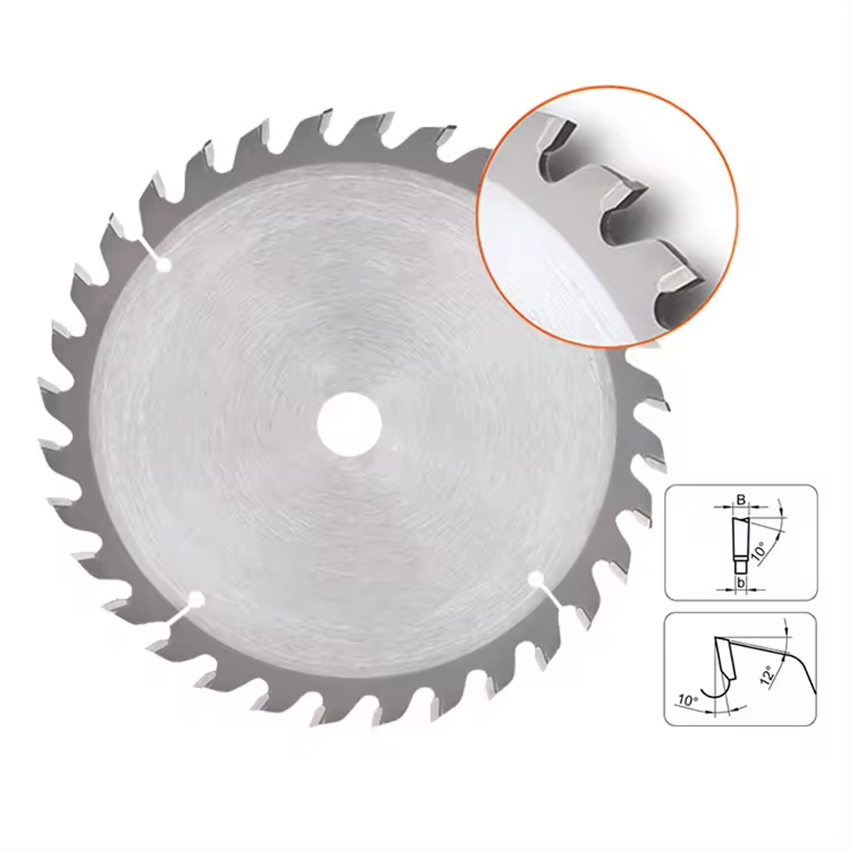

2.Incorporates an ATB (Alternating Top Bevel) offset tooth design,  The angle of the tooth scores the surface of the wood in advance of the cut, cleanly cutting the wood fibers, before the following teeth remove the chip. This provides for a much smoother cut, with much less chance of splintering the surface of the wood.

3.Tungsten carbide teeth provide excellent wear and heat resistance. positive cutting angle which provides fast and efficient removal of chips and swarf.

4.Fully hardened steel blade body – delivers accuracy and resists bending and deflection for true cuts.

5.Heat expansion slots allow the blade rim to expand and contract without warping for straight and accurate cuts.

6.Equipment use with Circular Saw, Miter Saw, Table Saw, Radial Arm Saw, etc.


For Other Sizes, Types, Materials, Standard, Process, Packages, Please Contact us!

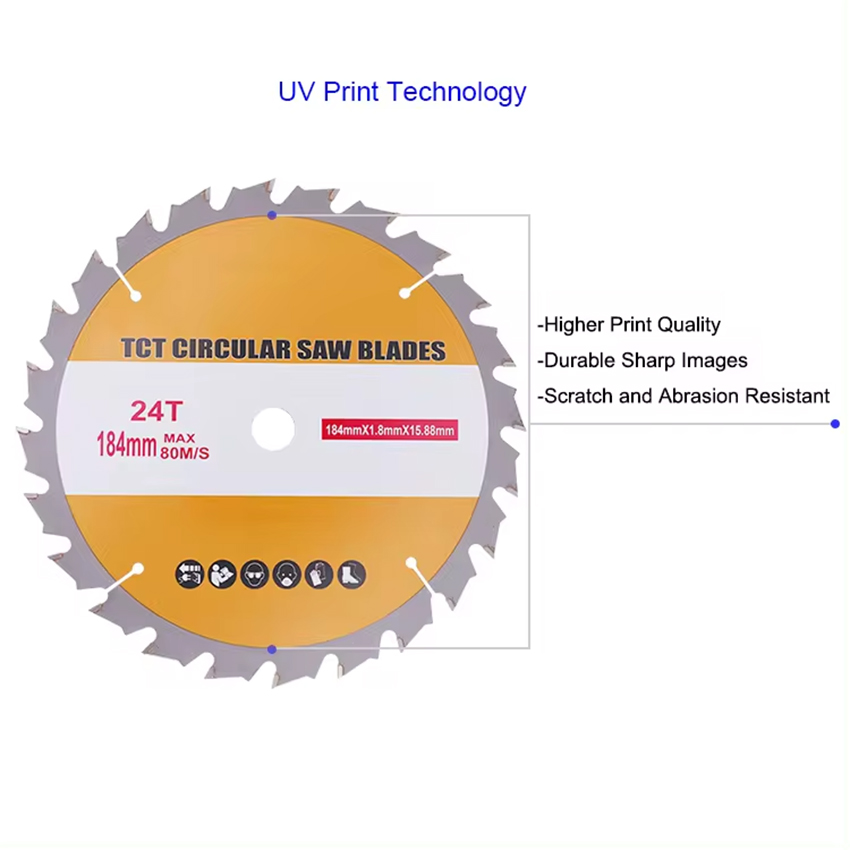

UV Print Technology for Saw Blade

General Use Tungsten Carbide Tipped TCT Wood Cutting Circular Saw Blade for Wood

General Use Tungsten Carbide Tipped TCT Wood Cutting Circular Saw Blade for Wood

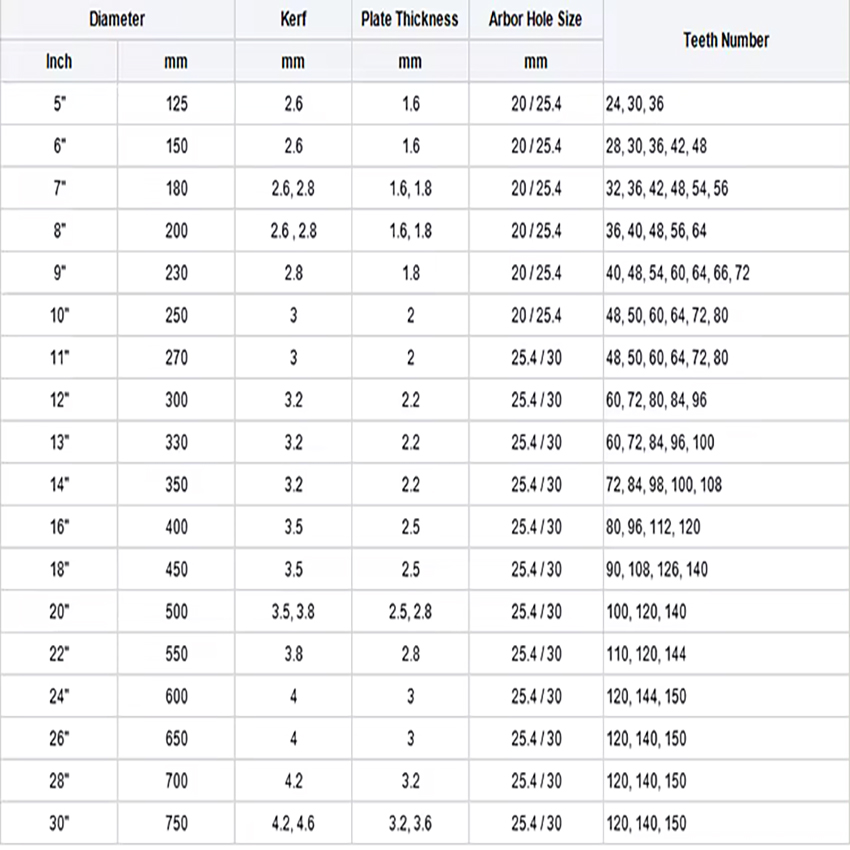

* Other specifications and sizes are available upon request

General Use Tungsten Carbide Tipped TCT Wood Cutting Circular Saw Blade for Wood

General Use Tungsten Carbide Tipped TCT Wood Cutting Circular Saw Blade for Wood
